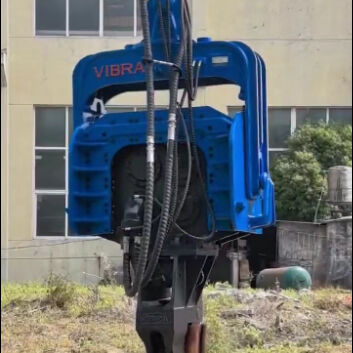

Maximum 1500kN Force Pile Driver on Integrated Four-Wheel Electric Chassis

The VIBRA Four Eccentric Pile Driver represents a significant leap in vibratory piling technology. Engineered for robustness and high performance, this hydraulic press-in machine is designed to tackle the most demanding foundation projects across diverse terrains. Its innovative four-eccentric mechanism sets a new standard for efficiency, stability, and power transmission, making it an ideal solution for the growing infrastructure markets of Southeast Asia, India, and Russia, where reliability under challenging conditions is paramount.

• 1. Revolutionary Four-Eccentric Vibratory System

  Feature: Utilizes four eccentric masses instead of the conventional two, generating a perfectly balanced, circular vibration.

  Advantage: This design drastically reduces harmful lateral vibrations and stress on the carrier excavator's structure, leading to superior operational stability, extended equipment lifespan, and more precise pile alignment. It ensures maximum energy is transferred vertically into the pile for faster penetration.

• 2. High-Power Performance & Exceptional Speed

  Feature: Powered by a robust 500kW diesel engine, delivering a maximum torque of 100kNm and a maximum crowd/extraction speed of 20m/min.

  Advantage: Provides consistent, high-torque power to overcome dense soils and hard strata. The remarkable extraction speed significantly reduces project cycle times, allowing for quick pile installation and removal, thereby boosting on-site productivity and lowering overall project costs.

• 3. Powerful Driving and Extraction Capabilities

  Feature: Boasts a maximum pile driving force of 1500kN and an impressive maximum pulling (extraction) force of 2000kN.

  Advantage: Offers unparalleled versatility, handling both driving and extraction with equal proficiency. The immense pulling force makes it exceptionally effective for extracting sheet piles and temporary casings, a critical requirement for many civil engineering projects.

• 4. Adaptability for Varied Project Demands

  Feature: Features an adjustable stroke length and is available in a series of models (FV-500 to FV-900) compatible with excavators from 48 to 100 tons.

  Advantage: Provides the flexibility to match the machine to specific project requirements and existing carrier equipment. It is capable of handling piles up to 32 meters in length, making it suitable for a vast range of applications from building foundations to port and bridge construction.

This pile driver is engineered for heavy civil contractors, foundation specialists, and government project entities engaged in:

• High-rise building and industrial plant foundations.
• Transportation infrastructure (bridges, highways, railways).
• Port, wharf, and coastal defense projects.
• Urban development and utility projects requiring press-in piling methods.

Built for durability and power, the VIBRA Four Eccentric Pile Driver delivers the performance and reliability needed to meet the ambitious infrastructure goals of Southeast Asia, India, and Russia, ensuring projects are completed on time, within budget, and to the highest standards.
