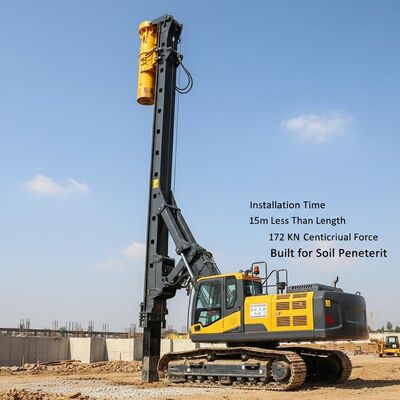

Installation Time Less Than 1 Hour Excavator Mounted Pile Driver Featuring 15m Piling Length and 172 Kn Centrifugal Force Built for Soil Penetration

Product Description:

The Excavator Mounted Pile Driver is a robust and efficient hydraulic attachment designed to transform your excavator into a powerful piling machine. Engineered to deliver exceptional performance and durability, this product is ideal for construction projects that require precise and reliable pile driving capabilities. With its advanced design and superior components, the Excavator Mounted Pile Driver ensures maximum productivity while maintaining ease of operation and safety.

One of the standout features of this pile driver is its hanging amplitude of just 6mm, which allows for precise and stable pile driving operations. This minimal amplitude ensures that the piles are driven accurately into the ground without unnecessary vibrations or movements, contributing to the longevity of both the pile driver and the excavator. Maintaining stability during operation is critical, and this attribute highlights the product’s engineering excellence.

Operating pressure is a key factor in the performance of hydraulic equipment, and the Excavator Mounted Pile Driver operates efficiently within a pressure range of 20-25 MPa. This operating pressure range is optimized to provide the necessary force for driving piles into various types of soil and ground conditions. By utilizing hydraulic power, the pile driver achieves smooth and consistent operation, reducing wear and tear and enhancing the overall lifespan of the equipment.

The weight of the pile driver ranges from 1500 to 3000 kilograms, making it a heavy-duty attachment capable of handling demanding piling tasks. This weight range ensures that the pile driver has enough mass to generate the required impact force for driving piles while remaining compatible with a wide range of excavator models. The substantial weight, coupled with the hydraulic power source, makes this pile driver a reliable tool for both small and large-scale construction projects.

Powering the pile driver is a hydraulic system that provides a clean, efficient, and powerful energy source. The hydraulic power source allows for precise control of the pile driving process, enabling operators to adjust force and speed according to the specific requirements of each project. Hydraulic systems are known for their durability and low maintenance requirements, making the Excavator Mounted Pile Driver a cost-effective solution for long-term use.

An important accessory that complements the pile driver’s functionality is the extension arm, rated to handle loads up to 500 kilograms. This extension arm enhances the versatility of the pile driver by allowing it to reach and position piles with greater accuracy and flexibility. The extension arm is built to withstand the rigorous demands of construction environments, ensuring reliable performance even under heavy loads.

Incorporating the Excavator Final Drive Motor into the design of the Excavator Mounted Pile Driver ensures seamless integration with the excavator’s existing drive system. The Excavator Final Drive Motor plays a crucial role in transferring power from the hydraulic system to the pile driver, facilitating smooth and efficient operation. This integration minimizes energy loss and maximizes the impact force delivered to the piles, improving overall operational efficiency.

Moreover, the Excavator Final Drive Motor is engineered for durability and high performance, complementing the rugged build of the pile driver. Its compatibility with the Excavator Mounted Pile Driver allows for quick installation and easy maintenance, reducing downtime and enhancing productivity on the job site.

In summary, the Excavator Mounted Pile Driver is a highly effective hydraulic attachment that combines precision, power, and durability. With a hanging amplitude of 6mm, operating pressure between 20-25 MPa, and a weight range of 1500-3000 kg, it delivers reliable pile driving performance across various applications. The inclusion of a 500 kg capacity extension arm and the integration of the Excavator Final Drive Motor further enhance its functionality and ease of use. This product is an excellent choice for contractors and construction professionals seeking a dependable and versatile pile driving solution that maximizes the capabilities of their excavators.

Features:

• Product Name: Excavator Mounted Pile Driver
• Weight of Pile Driver: 1500-3000 Kg
• Centrifugal Force: 172 Kn
• Operating Pressure: 20-25 MPa
• Piling Length: 15m
• Installation Time: Less Than 1 Hour
• Equipped with Excavator Final Drive Motor for efficient power transmission
• Ideal Concrete Pile Driving Equipment for various construction projects

Technical Parameters:

Applications:

The VIBRA FV-400 Excavator Mounted Pile Driver is an advanced Concrete Pile Driving Equipment designed to deliver efficient and reliable performance across various construction and infrastructure projects. With its robust design and powerful specifications, this equipment is ideal for driving concrete piles into the ground with precision and ease. The FV-400 model operates at a pressure of 30 Mpa, with a maximum pressure capacity of 32 Mpa, ensuring strong impact force for effective piling operations. Its hammer weight of 2400kg provides the necessary momentum to drive piles up to a length of 15 meters, making it suitable for medium to large-scale piling tasks.

The Excavator Mounted Pile Driver from VIBRA is widely used in urban construction sites, bridge foundation projects, harbor and dock construction, and road and railway infrastructure developments. Its mounting on an excavator allows for enhanced mobility and flexibility, enabling operators to maneuver in tight spaces and challenging terrains where traditional piling rigs may struggle. This feature makes the FV-400 particularly valuable for projects in densely populated areas or sites with limited access.

One of the standout features of the VIBRA FV-400 is its low noise operation. Noise pollution is a critical concern in urban construction, and the low noise design of this Concrete Pile Driving Equipment helps minimize disruption to nearby residents and workers. This makes the FV-400 an environmentally friendly choice for piling operations, complying with modern regulations regarding noise control.

The product's application occasions also extend to offshore piling projects where the equipment’s robustness and precision are crucial for installing piles in marine environments. Additionally, it is suitable for use in industrial construction, such as factories and warehouses, where foundation stability is essential. The Excavator Mounted Pile Driver’s adaptability to different piling materials and ground conditions further enhances its utility in diverse project scenarios.

In summary, the VIBRA FV-400 Excavator Mounted Pile Driver is a versatile and efficient Concrete Pile Driving Equipment, suitable for a wide range of construction occasions and scenarios. Its powerful hammer weight, high operation pressure, and low noise feature make it an indispensable tool for contractors aiming to achieve high-quality piling results with minimal environmental impact.

Customization:

VIBRA offers customized solutions for the FV-400 Excavator Mounted Pile Driver, designed to meet your specific project needs. This Concrete Pile Driving Equipment features a piling length of 15m, allowing for deep and precise pile installation. The hammer weight of 2400kg ensures powerful driving force, while the extension arm with a capacity of 500kg provides enhanced reach and flexibility. With a hanging amplitude of just 6mm, the FV-400 operates with exceptional stability and accuracy. One of the standout features of this Excavator Mounted Pile Hammer is its low noise operation, making it ideal for urban and noise-sensitive environments. Trust VIBRA’s Concrete Pile Driving Equipment to deliver reliable performance and customized adaptability for your piling projects.

Support and Services:

Our Excavator Mounted Pile Driver is designed to deliver high performance and reliability in various piling applications. To ensure optimal operation and longevity of the equipment, we provide comprehensive technical support and services.

Technical Support includes installation guidance, operational training, and troubleshooting assistance. Our team of experts is available to help you understand the correct setup procedures, safe operating practices, and routine maintenance requirements.

We offer detailed user manuals and maintenance schedules that cover all aspects of the pile driver, from hydraulic system checks to wear part replacements. Regular maintenance is crucial to prevent unexpected downtime and extend the service life of the equipment.

In addition to technical assistance, we provide spare parts supply and repair services. Genuine parts are recommended to maintain the integrity and performance of the pile driver. Our service centers are equipped to handle repairs and overhauls efficiently to minimize your project delays.

For any software or firmware updates, our support team ensures that your equipment stays up-to-date with the latest enhancements and safety features. We also offer on-site support and inspection services to help you maintain the pile driver in peak condition.

By choosing our Excavator Mounted Pile Driver, you gain access to a dedicated support network committed to helping you achieve maximum productivity and safety on your piling projects.

FAQ:

Q1: What type of excavators is the VIBRA FV-400 pile driver compatible with?

A1: The VIBRA FV-400 pile driver is designed to be compatible with most standard excavators within the weight range of 8 to 20 tons. It is recommended to check the mounting specifications to ensure proper fitment.

Q2: What is the maximum pile size that the FV-400 can handle?

A2: The FV-400 model can effectively drive piles with a maximum diameter of up to 400 mm, making it suitable for a variety of construction projects requiring medium to large pile sizes.

Q3: How does the VIBRA FV-400 improve operational efficiency on site?

A3: Mounted directly on the excavator, the FV-400 pile driver allows for quick positioning and driving of piles without the need for additional heavy machinery, significantly reducing setup time and increasing productivity.

Q4: What type of piles can be driven using the VIBRA FV-400?

A4: The FV-400 is capable of driving various types of piles including steel, timber, and concrete piles, providing versatility for different construction requirements.

Q5: Is the VIBRA FV-400 easy to install and operate?

A5: Yes, the FV-400 is designed for easy mounting on excavators and comes with user-friendly controls, allowing operators to quickly learn and efficiently use the pile driver on site.
